Sistem veriyolu kablosu, düz; 50 m; her iki uca takılı; B kodlu; M12 soket, düz; M12 fiş, düz; sarı Short description:PUR, halogen-freeSilicon- and CFC-freeGood resistance to microbes, hydrolysis, oil, chemicals and UV radiationGood chemical resistanceCable used: UL listed

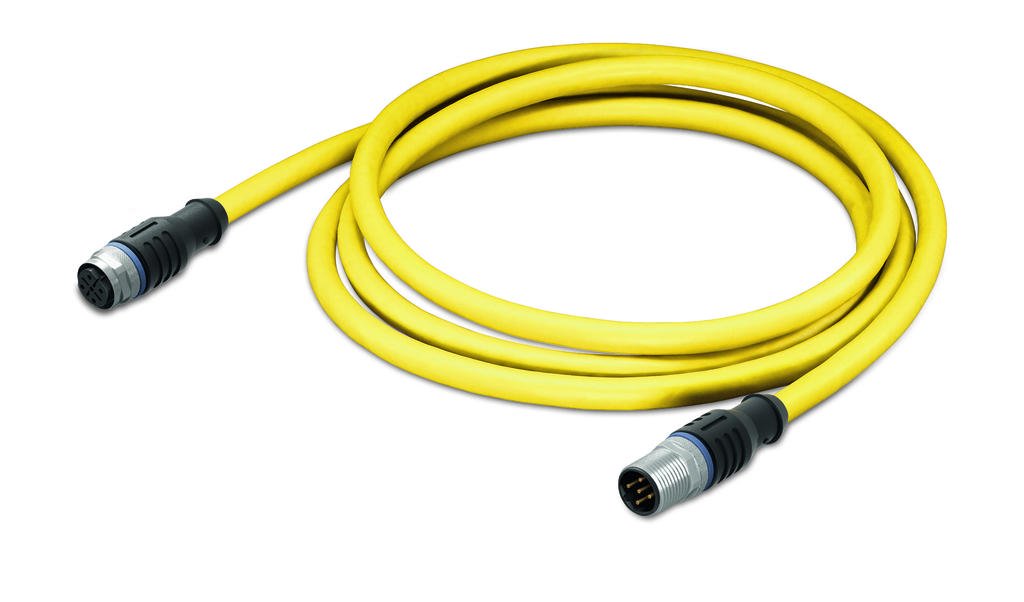

Sistem veriyolu kablosu, düz; 50 m; her iki uca takılı; B kodlu; M12 soket, düz; M12 fiş, düz; sarı
Short description:
Connection type | M12 socket - M12 plug |
Kutup sayısı | 5 |
Leitungsanschlussrichtung zur Steckrichtung | 0° |
Leitungsanschlussrichtung zur Steckrichtung (2) | 0° |
Steckgesichtkodierung Leitung/Adapter 1 1 | B coded |
Steckgesichtkodierung Leitung/Adapter 2 1 | B coded |
Cable length | 50m |
Çalışma gerilimi | 60 V |
Operating current | 4A |
Rated surge voltage | 1,5 kV gemäß IEC 61076-2-101 |
Kontak direnci | 10MΩ |
Insulation resistance | 5000MΩ |
İletken direnci | ≤ 145 Ω/km |
bükme yarıçapı | min. 5 x cable Ø |
Durchmesser der Mantelleitung | 6 mm |
Bauartkurzzeichen | KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, geschirmt |
Screening | Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 % |
İletken tasarımı | Bare copper wire, 26/7 AWG |
Leiterisolierung | Zell-PE, Ader-Ø max. 1,0 mm |
Gövde malzemesi | TPU/TPU, black (~ RAL 9005) |
Kontak materyali | CuZn |
Kontak kaplaması | CuNi/Au |
Materialeigenschaften der Anschlüsse | Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton) |
Takıp çıkarma sayısı | 100 |
Tightening torque | 1 Nm |
Ağırlık | 2,1 |
Renk | sarı |
Surrounding air (operating) temperature | -25 … 60 °C |
Koruma sınıfı | IP67 |
Kirlilik derecesi (5) | 3/2 per IEC 60664-1 |
SAP´den ambalaj tipi | BOX |
Country of origin | DE |
GTIN | 4045454686147 |
Customs Tariff No. | 85444290900 |
