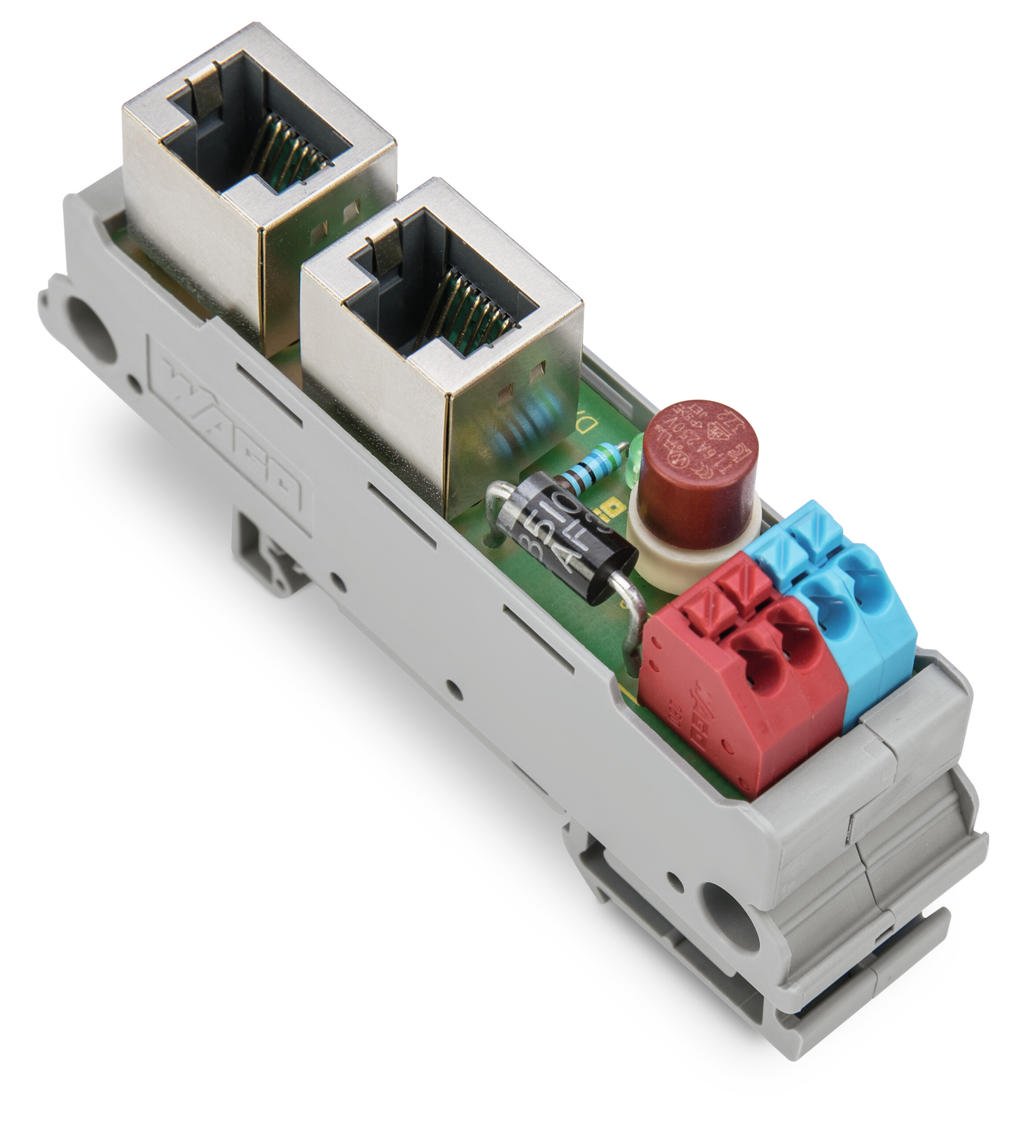

Arayüz modülü; RJ-45; güç köprü kontaklı; PCB klemensler; Cat. 5 Features:Interface module with RJ-45 connector for ETHERNETPassive PoE-injectorFor up to 100 Mbit/s, Cat. 5Cabinet wiring with preassembled RJ-45-patch cabels
Arayüz modülü; RJ-45; güç köprü kontaklı; PCB klemensler; Cat. 5
Features:
Operating voltage | ≤ DC 48 V |
Nominal akım | 1,5A |
Insulation resistance | ≥ 500 MΩ |
Specialty functions | Passive PoE-injector With LED, fuse |
Dielektrik dayanımı kontak-kontak | 1 |
Connection type (1) | System |
Kutup sayısı | 8 |
Pluggable connector | RJ-45 shielded |
Connection type (2) | System |
No. of poles 2 | 8 |
Pluggable connector 2 | RJ-45 shielded |
Connection type (3) | Supply |
No. of poles 3 | 4 |
Bağlantı teknolojisi 3 | Push-in CAGE CLAMP® |
WAGO terminal 3 | WAGO 250 Series |
tek damarlı, bağlanabilir | 0,2 … 1,5 mm² / 24 … 16 AWG |
ince bükümlü, bağlanabilir | 0,2 … 1,5 mm² / 24 … 16 AWG |
Sıyırma uzunluğu | 8,5 … 9,5 mm / 0.33 … 0.37 inch |
Min. takıp çıkarma sayısı | 500 |
Maks. iletim uzunluğu | 100m |
Bağlantı kablosu | min. CAT5 |
Width | 20,5 mm / 0.807 inch |
DIN rayın üst kenarından yükseklik | 51 mm / 2.007 inch |
Depth | 85 mm / 3.346 inch |
Montaj tipi | DIN 35 ray |
Housing design | Mounting carrier |
Yangın yükü | 0,482MJ |
Ağırlık | 32 |
Surrounding air (operating) temperature | 0 … 70 °C |
Surrounding air (storage) temperature | -40 … 85 °C |
Relative humidity | ≤ 85% (non condensing) |
SAP´den ambalaj tipi | BOX |
Country of origin | DE |
GTIN | 4055143572637 |
Customs Tariff No. | 85423990000 |
