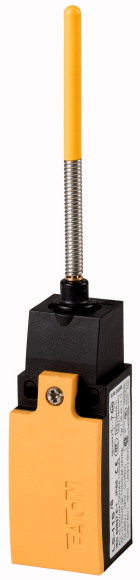

LSM-11S/S
266139 LSM-11S/S
266139

Emniyet pozisyon anahtarı, LS(M)-…, Yaylı çubuk aktüatör, Komple ünite, 1 N/A, 1 NC, Ani hareketli kontak - Evet, Sarı, Metal, Kafes Kelepçe, -25 - +70 °C
Güvenlik konumu anahtarı, Temel fonksiyon: Konum anahtarları, Parça grubu referansı: LS(M)-…, Ürün yelpazesi: Yaylı çubuk aktüatör, Koruma Derecesi: IP66, IP67, Özellikler: Komple ünite, Ortam sıcaklığı: -25 - +70 °C, Ani hareketli kontak: Evet, Açıklama: Güvenli konum anahtarı olarak kullanılmaz, Kontaklar N/O = Normalde açık: 1 N/O, Kontaklar N/C = Normalde kapalı: 1 NC, Renkli Muhafaza kapakları: Sarı, Muhafaza: Metal, Bağlantı tipi: Kafes Kelepçesi, Kafes-Klemp, Wago Kontakttechnik, 32432 Minden, Almanya'nın tescilli ticari markasıdır., Wago'nun Kafes-Kelepçe terminalleri için aksesuarlar: elektrikli tarak, gri, Wago Makale No. 264- 402, Çubuk uzunluğu: 126 mm, Standartlar: IEC/EN 60947

Basic function	Position switches
Part group reference	LS(M)-…
Product range	Spring-rod actuator
Degree of Protection	IP66, IP67
Features	Complete unit
Ambient temperature	-25 - +70 °C
Snap-action contact	Yes
Description	Not to be used as a safety position switch
N/O = Normally open	1 N/O
N/C = Normally closed	1 NC
Contact sequence
Contact travel■ = Contact closed□ = Contact open
Enclosure covers	Yellow
Enclosure covers
Housing	Metal
Connection type	Cage Clamp
Notes	Cage-Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden, Germany. Accessories for the Cage-Clamp terminals from Wago:power comb, gray, Wago Article No. 264-402
Rod length	126 mm
Notes	The operating head can be rotated at 90° intervals to adapt to the specified approach direction.
Standards	IEC/EN 60947
Climatic proofing	Damp heat, constant, to IEC 60068-2-78; damp heat, cyclical, to IEC 60068-2-30
Ambient temperature	-25 - +70 °C
Mounting position	As required
Degree of Protection	IP66, IP67
Terminal capacities >Solid	1 x (0.5 - 2.5) mm2
Terminal capacities >Flexible with ferrule	1 x (0.5 - 1.5) mm2
Repetition accuracy	0.15 mm
Rated impulse withstand voltage [Uimp]	4000 V AC
Rated insulation voltage [Ui ]	400 V
Overvoltage category/pollution degree	III/3
Rated operational current [Ie ] >AC-15 >24 V [Ie ]	6 A
Rated operational current [Ie ] >AC-15 >220 V 230 V 240 V [Ie]	6 A
Rated operational current [Ie ] >AC-15 >380 V 400 V 415 V [Ie]	4 A
Rated operational current [Ie ] >DC-13 >24 V [Ie ]	3 A
Rated operational current [Ie ] >DC-13 >110 V [Ie ]	0.6 A
Rated operational current [Ie ] >DC-13 >220 V [Ie ]	0.3 A
Control circuit reliability >at 24 V DC/5 mA [HF ]	< 10 -7, < 1 fault in 107 operations Fault probability
Control circuit reliability >at 5 V DC/1 mA [HF ]	< 5 x 10-6, < 1 failure at 5 x 106 operations Fault probability
Supply frequency	max. 400 Hz
Short-circuit rating to IEC/EN 60947-5-1 >max. fuse	6 A gG/gL
Rated conditional short-circuit current	1 kA
Lifespan, mechanical [Operations]	8 x 106
Mechanical shock resistance (half-sinusoidal shock, 20 ms) >Standard-action contact	25 g
Operating frequency [Operations/h]	≦ 6000
Mechanical >Actuating force at beginning/end of stroke	1.0/8.0 N
Mechanical >Actuating torque of rotary drives	0.2 Nm
Rated operational current for specified heat dissipation [In]	6 A
Heat dissipation per pole, current-dependent [Pvid]	0.17 W
Equipment heat dissipation, current-dependent [Pvid]	0 W
Static heat dissipation, non-current-dependent [Pvs]	0 W
Heat dissipation capacity [Pdiss]	0 W
Operating ambient temperature min.	-25 °C
Operating ambient temperature max.	+70 °C
10.2 Strength of materials and parts >10.2.2 Corrosion resistance	Meets the product standard´s requirements.
10.2 Strength of materials and parts >10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard´s requirements.
10.2 Strength of materials and parts >10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard´s requirements.
10.2 Strength of materials and parts >10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects	Meets the product standard´s requirements.
10.2 Strength of materials and parts >10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard´s requirements.
10.2 Strength of materials and parts >10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts >10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts >10.2.7 Inscriptions	Meets the product standard´s requirements.
10.3 Degree of protection of ASSEMBLIES	Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances	Meets the product standard´s requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder´s responsibility.
10.8 Connections for external conductors	Is the panel builder´s responsibility.
10.9 Insulation properties >10.9.2 Power-frequency electric strength	Is the panel builder´s responsibility.
10.9 Insulation properties >10.9.3 Impulse withstand voltage	Is the panel builder´s responsibility.
10.9 Insulation properties >10.9.4 Testing of enclosures made of insulating material	Is the panel builder´s responsibility.
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder´s responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility	Is the panel builder´s responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Width sensor	31 mm
Diameter sensor	0 mm
Height of sensor	61 mm
Length of sensor	33.5 mm
Rated operation current Ie at AC-15, 24 V	6 A
Rated operation current Ie at AC-15, 125 V	6 A
Rated operation current Ie at AC-15, 230 V	6 A
Rated operation current Ie at DC-13, 24 V	3 A
Rated operation current Ie at DC-13, 125 V	0.8 A
Rated operation current Ie at DC-13, 230 V	0.3 A
Switching function	Quick-break switch
Switching function latching	No
Output electronic	No
Forced opening	No
Number of safety auxiliary contacts	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Type of interface	None
Type of interface for safety communication	None
Construction type housing	Cuboid
Material housing	Metal
Coating housing	Other
Type of control element	Spring-rod
Alignment of the control element	Other
Type of electric connection	Cable entry metrical
With status indication	No
Suitable for safety functions	Yes
Explosion safety category for gas	None
Explosion safety category for dust	None
Ambient temperature during operating	25 - 70 °C
Degree of protection (IP)	IP67
Degree of protection (NEMA)	4X
Product Standards	IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking
UL File No.	E29184
UL Category Control No.	NKCR
CSA File No.	12528
CSA Class No.	3211-03
North America Certification	UL listed, CSA certified
Degree of Protection	IEC: IP66, 67, UL/CSA Type 3R, 4X (indoor use only), 12, 13
