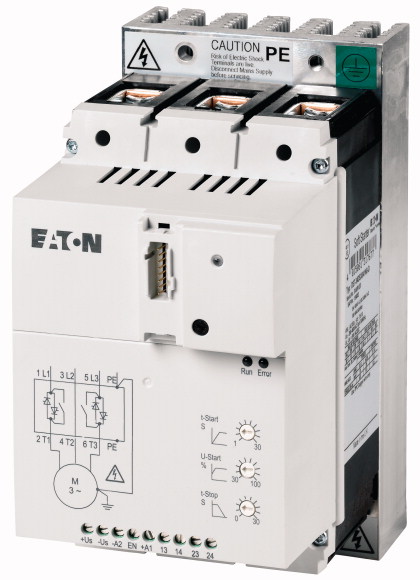

Yumuşak yol verici, 100 A, 200 - 480 V AC, 24 V DC, Çerçeve boyutu: FS3, İletişim Arayüzleri: SmartWire-DT Yumuşak yol verici, Ürün yelpazesi: SmartWire-DT bağımlı, Açıklama: Dahili bypass kontaklı, Fonksiyon: Üç fazlı yükler için yumuşak yol vericiler, Şebeke besleme gerilimi (50/60 Hz): ULN= 200 - 480 V AC, Besleme gerilimi: Us = 24 V DC, Kontrol voltajı: UC= 24 V DC, Atanan motor gücü (Standart bağlantı, Hat içi) 400 V, 50 Hz'de: P= 55 kW, 460 V, 60 Hz'de: P= 75 HP, Nominal çalışma akımı AC-53: Ie= 100 A, Nominal çalışma gerilimi: Ue= 200 V, 230 V, 400 V, 480 V, SmartWire-DT'ye bağlantı: evet, Çerçeve boyutu: FS3, Standartlar: IEC/EN 60947-4 -2, UL 508, CSA22.2-14
Yumuşak yol verici, 100 A, 200 - 480 V AC, 24 V DC, Çerçeve boyutu: FS3, İletişim Arayüzleri: SmartWire-DT
Yumuşak yol verici, Ürün yelpazesi: SmartWire-DT bağımlı, Açıklama: Dahili bypass kontaklı, Fonksiyon: Üç fazlı yükler için yumuşak yol vericiler, Şebeke besleme gerilimi (50/60 Hz): ULN= 200 - 480 V AC, Besleme gerilimi: Us = 24 V DC, Kontrol voltajı: UC= 24 V DC, Atanan motor gücü (Standart bağlantı, Hat içi) 400 V, 50 Hz'de: P= 55 kW, 460 V, 60 Hz'de: P= 75 HP, Nominal çalışma akımı AC-53: Ie= 100 A, Nominal çalışma gerilimi: Ue= 200 V, 230 V, 400 V, 480 V, SmartWire-DT'ye bağlantı: evet, Çerçeve boyutu: FS3, Standartlar: IEC/EN 60947-4 -2, UL 508, CSA22.2-14
| Product range | SmartWire-DT slave |
| Subrange | SmartWire-DT Soft starters |
| Description | With internal bypass contacts |
| Function | Soft starters for three-phase loads |
| Mains supply voltage (50/60 Hz) [ULN] | 200 - 480 V AC |
| Supply voltage [Us] | 24 V DC |
| Control voltage [UC] | 24 V DC |
| at 400 V, 50 Hz [P] | 55 kW |
| at 460 V, 60 Hz [P] | 75 HP |
| AC-53 [Ie] | 100 A |
| Rated operational voltage [Ue] | 200 V 230 V 400 V 480 V |
| Connection to SmartWire-DT | yes |
| Frame size | FS3 |
| Standards | IEC/EN 60947-4-2 UL 508 CSA22.2-14 |
| Approvals | CE |
| Approvals | UL CSA C-Tick UkrSEPRO |
| Climatic proofing | Damp heat, constant, to IEC 60068-2-3 Damp heat, cyclic, to IEC 60068-2-10 |
| Ambient temperature >Operation [ϑ] |
-5 - +40 up to 60 at 2% derating per Kelvin temperature rise °C |
| Ambient temperature >Storage [ϑ] |
-25 - +60 °C |
| Altitude | 0 - 1000 m, above that 1 % derating per 100 m , up to 2000 m m |
| Mounting position | Vertical |
| Degree of protection >Degree of Protection |
IP20 (terminals IP00) |
| Degree of protection >Integrated |
Protection type IP40 can be achieved on all sides with covers from the NZM range. |
| Protection against direct contact | Finger- and back-of-hand proof |
| Overvoltage category/pollution degree | II/2 |
| Shock resistance | 8 g/11 ms |
| Vibration resistance to EN 60721-3-2 | 2M2 |
| Radio interference level (IEC/EN 55011) | B |
| Static heat dissipation, non-current-dependent [Pvs] | 25 W |
| Weight | 1.8 kg |
| Rated operating voltage [Ue] | 200 - 480 V AC |
| Supply frequency [fLN] | 50/60 Hz |
| Rated operational current [Ie
] >AC-53 [Ie] |
100 A |
| Assigned motor rating (Standard connection, In-Line) >at 230 V, 50 Hz [P] |
30 kW |
| Assigned motor rating (Standard connection, In-Line) >at 400 V, 50 Hz [P] |
55 kW |
| Assigned motor rating (Standard connection, In-Line) >at 200 V, 60 Hz [P] |
30 HP |
| Assigned motor rating (Standard connection, In-Line) >at 230 V, 60 Hz [P] |
30 HP |
| Assigned motor rating (Standard connection, In-Line) >at 460 V, 60 Hz [P] |
75 HP |
| Overload cycle to IEC/EN 60947-4-2 >AC-53a |
99 A: AC-53a: 3 - 5: 75 - 10 |
| Overload cycle to IEC/EN 60947-4-2 >Internal bypass contacts |
✓ |
| Short-circuit rating >Type “1” coordination |
NZMN1-M100 |
| Short-circuit rating >Type „2“ coordination (additional with the fuses for coordination type „1“) |
3 x 170M4008 |
| Fuse base (number x part no.) | 3 x 170H3004 |
| Cable lengths >Solid |
1 x (25 - 70) 2 x (6 - 25) mm2 |
| Cable lengths >Stranded |
1 x (25 - 70) 2 x (6 - 25) mm2 |
| Cable lengths >Solid or stranded |
1 x (12 - 2/0) AWG |
| Cable lengths >Copper band |
2 x 9 x 0.89 x 9 x 0.8 MM |
| Cable lengths >Tightening torque |
6 (≤ 10 mm²); 9 (> 10 mm²) Nm |
| Cable lengths >Screwdriver (PZ: Pozidriv) |
PZ2; 1 x 6 mm mm |
| Control cables >Solid |
1 x (0.5 - 2.5) 2 x (0.5 - 1.0) mm2 |
| Control cables >Flexible with ferrule |
1 x (0.5 - 1.5) 2 x (0.5 - 0.75) mm2 |
| Control cables >Stranded |
1 x (0.5 - 1.5) 2 x (0.5 - 1.0) mm2 |
| Control cables >Solid or stranded |
1 x (21 - 14) 2 x (21 - 18) AWG |
| Control cables >Tightening torque |
0.4 Nm |
| Control cables >Screwdriver |
0,6 x 3,5 mm |
| Digital inputs >Control voltage >DC-operated |
24 V DC +10 %/- 15 % oder über SWD V DC |
| Digital inputs >Current consumption 24 V >External 24 V |
1.6 mA |
| Digital inputs >Pick-up voltage >DC-operated |
17.3 - 27 V DC |
| Digital inputs >Drop-out voltage [x Us ] >DC operated |
0 - 3 V DC |
| Digital inputs >Pick-up time >DC operated |
250 ms |
| Digital inputs >Drop-out time >DC operated |
350 ms |
| Regulator supply >Voltage [Us] |
24 V DC +10 %/- 15 % V |
| Regulator supply >Current consumption [Ie] |
50 mA |
| Regulator supply >Current consumption at peak performance (close bypass) at 24 V DC [IPeak] |
0,6/50 A/ms |
| Regulator supply >Notes |
External supply voltage |
| Relay outputs >Number |
2 (TOR, Ready) |
| Relay outputs >Voltage range |
250 V AC |
| Relay outputs >AC-11 current range |
1 A, AC-11 A |
| Ramp times >Acceleration |
1 - 30 s |
| Ramp times >Deceleration |
0 - 30 s |
| Start voltage (= turn-off voltage) | 30100 % |
| Start pedestal | 30 - 100 % |
| Current limitation | (0 - 8) x Ie |
| Fields of application >Fields of application |
Soft starting of three-phase asynchronous motors |
| Fields of application >1-phase motors |
● |
| Fields of application >3-phase motors |
✓ |
| Fast switching (semiconductor contactor) | - (minimum ramp time 1s) |
| Soft start function | ✓ |
| Reversing starter | External solution required |
| Suppression of closing transients | ✓ |
| Current limitation | ●, with PKE |
| Fault memory | 8 Faults |
| Suppression of DC components for motors | ✓ |
| Potential isolation between power and control sections | ✓ |
| Communication Interfaces | SmartWire-DT |
| Rated operational current for specified heat dissipation [In] | Rated impulse withstand voltage:
|
| Heat dissipation per pole, current-dependent [Pvid] | 100 A |
| Equipment heat dissipation, current-dependent [Pvid] | 0 W |
| Static heat dissipation, non-current-dependent [Pvs] | 25 W |
| Heat dissipation capacity [Pdiss] | 25 W |
| Operating ambient temperature min. | 0 W |
| Operating ambient temperature max. | -5 °C |
| 10.2 Strength of materials and parts >10.2.2 Corrosion resistance |
+40 °C |
| 10.2 Strength of materials and parts >10.2.3.1 Verification of thermal stability of enclosures |
Meets the product standard´s requirements. |
| 10.2 Strength of materials and parts >10.2.3.2 Verification of resistance of insulating materials to normal heat |
Meets the product standard´s requirements. |
| 10.2 Strength of materials and parts >10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects |
Meets the product standard´s requirements. |
| 10.2 Strength of materials and parts >10.2.4 Resistance to ultra-violet (UV) radiation |
Meets the product standard´s requirements. |
| 10.2 Strength of materials and parts >10.2.5 Lifting |
Meets the product standard´s requirements. |
| 10.2 Strength of materials and parts >10.2.6 Mechanical impact |
Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2 Strength of materials and parts >10.2.7 Inscriptions |
Does not apply, since the entire switchgear needs to be evaluated. |
| 10.3 Degree of protection of ASSEMBLIES | Meets the product standard´s requirements. |
| 10.4 Clearances and creepage distances | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.5 Protection against electric shock | Meets the product standard´s requirements. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.8 Connections for external conductors | Is the panel builder´s responsibility. |
| 10.9 Insulation properties >10.9.2 Power-frequency electric strength |
Is the panel builder´s responsibility. |
| 10.9 Insulation properties >10.9.3 Impulse withstand voltage |
Is the panel builder´s responsibility. |
| 10.9 Insulation properties >10.9.4 Testing of enclosures made of insulating material |
Is the panel builder´s responsibility. |
| 10.10 Temperature rise | Is the panel builder´s responsibility. |
| 10.11 Short-circuit rating | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.12 Electromagnetic compatibility | Is the panel builder´s responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | Is the panel builder´s responsibility. The specifications for the switchgear must be observed. |
| Rated operation current Ie at 40 °C Tu | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Rated operating voltage Ue | 100 A |
| Rated power three-phase motor, inline, at 230 V | 230 - 460 V |
| Rated power three-phase motor, inline, at 400 V | 30 kW |
| Rated power three-phase motor, inside delta, at 230 V | 55 kW |
| Rated power three-phase motor, inside delta, at 400 V | 0 kW |
| Function | 0 kW |
| Internal bypass | Single direction |
| With display | Yes |
| Torque control | No |
| Rated surrounding temperature without derating | No |
| Rated control supply voltage Us at AC 50HZ | 40 °C |
| Rated control supply voltage Us at AC 60HZ | 0 - 0 V |
| Rated control supply voltage Us at DC | 0 - 0 V |
| Voltage type for actuating | 24 - 24 V |
| Integrated motor overload protection | DC |
| Release class | No |
| Degree of protection (IP) | Other |
| Degree of protection (NEMA) | IP20 |
| Product Standards | 1 |
| Specially designed for North America | IEC/EN 60947-4-2; GB 14048.6; UL 508; CSA-C22.2 No 0-M91; CSA-C22.2 No 14-05 CE marking |
| Suitable for | No |
| Current Limiting Circuit-Breaker | Branch circuits |
| Max. Voltage Rating | No |
| Degree of Protection | 480 V |
