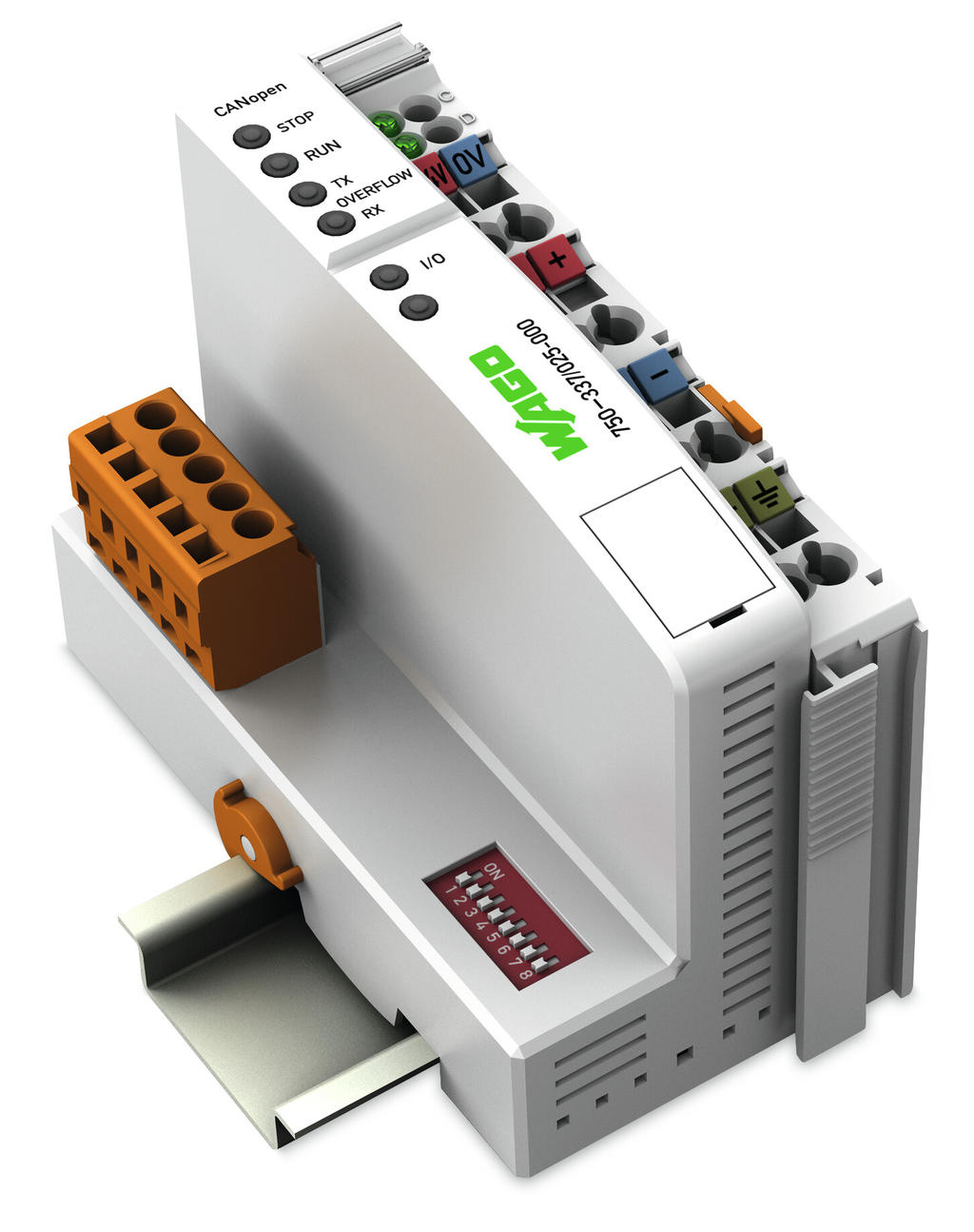

Fieldbus Coupler CANopen; MCS; Wide. heat; -
This fieldbus coupler connects the WAGO-I/O-SYSTEM as a slave to the CANopen fieldbus. Module data is transmitted using PDOs and SDOs.
The bus coupler recognizes all connected I/O modules and creates a local process image based on this. Analog and special module data are sent in words and/or bytes; Digital data is sent in the form of bits.
The local process image is divided into two data regions: received data and data to be sent. Process data can be sent to a control system via the CANopen bus for further processing. Process output data can be sent via the CANopen bus.
The data of the analog modules is stored in the PDOs in the order in which the modules are connected to the bus coupler. The bits of the digital modules are sent as bytes and are also mapped in PDOs. If the amount of digital information exceeds 8 bits, the bus coupler automatically starts with a new byte.
All entries of the object directory can be mapped in 32 Rx PDO and 32 Tx PDO according to the user's wishes.
The entire input and output process image can be transmitted using SDOs.
"Spacer modules" can be set via software.
Note: EDS files required
| İletişim | CANopen |
| Number of fieldbus nodes on the master max. | 110 |
| Baud rate | 10 kBd … 1 MBd |
| Fieldbus segment length max. | 1000 m |
| Transmission medium | Shielded Cu cable 3 x 0.25 mm² |
| I/O modülü sayısı (düğüm başına) | 64 |
| Diğer CANopen özellikleri | NMT slave Minimum başlama Değişken PDO eşlemesi Acil durum mesajı Can kurtarma Sanal modüllerin konfigürasyonu |
| PDO sayısı | 32 Tx / 32 Rx |
| SDO sayısı | 2 sunucu SDO |
| COB ID dağılımı | SDO, standart |
| Düğüm ID dağılımı | DIP anahtarlar |
| İletişim profili | DS-301 V4.1 |
| Aygıt profili | DS 401 V2.0 Uç kontrolü Kenar tetiklemeli PDO´lar Programlanabilir hata tepkisi |
| Input and output process image (Fieldbus) max. | 512 Byte/512 Byte |
| System supply voltage | DC 24 V(-25 … +30 %); via wiring level (CAGE CLAMP® connection) |
| Current consumption, system supply (5 V) | 350mA |
| Total current for system supply | 1.650mA |
| Field supply voltage | DC 24 V (-25 … +30 %); via power jumper contacts |
| Anma yükünde giriş akımı tip. (24 V) | 500mA |
| Nominal yükte güç kaynağı verimi (tip.) (24 V) | 87% |
| İzolasyon | 500 V sistem/besleme |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity of the power jumper contacts | 10A |
| Connection technology: communication/fieldbus | CANopen: 1 x 5-pole male connector |
| Connection technology: field supply | 6 x CAGE CLAMP® |
| Connection technology: system supply | 2 x CAGE CLAMP® |
| Connection technology: Device configuration | 1 x 4-pole male connector |
| Connection type (1) | System/field supply |
| Tek damarlı boylar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| İnce bükümlü kablolar | 0,08 … 2,5 mm² / 28 … 14 AWG |
| Sıyırma uzunluğu | 8 … 9 mm / 0.31 … 0.35 inch |
| Width | 50,5 mm / 1.988 inch |
| Height | 71,1 mm / 2.799 inch |
| DIN rayın üst kenarından yükseklik | 63,9 mm / 2.516 inch |
| Depth | 100 mm / 3.937 inch |
| Montaj tipi | DIN 35 ray |
| Gövde malzemesi | Polycarbonate, polyamide 6.6 |
| Ağırlık | 185 |
| Uygunluk işareti | CE |
| Surrounding air (operating) temperature | -20 … 60 °C |
| Surrounding air (storage) temperature | -40 … 85 °C |
| Koruma sınıfı | IP20 |
| Kirlilik derecesi (5) | 2 per IEC 61131-2 |
| Çalışma yüksekliği | 0 … 2000 m |
| Montaj pozisyonu | horizontal (standing/lying) or vertical |
| Nısbi nem (yoğuşmasız) | 95% |
| Relative humidity | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E DIN 40046-721-3, taking a temperature range of −20 … +60 °C into consideration (except wind-driven precipitation, water and ice formation) |
| Titreşime dayanıklı | 4g per IEC 60068-2-6 |
| Darbe direnci | 15g per IEC 60068-2-27 |
| EMV-Störfestigkeit | acc. to EN 61000-6-2, marine applications |
| EMU: |
acc. to EN 61000-6-4, marine applications |
| Kirletici maddelere maruziyet | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H2S contaminant concentration at a relative humidity |
10ppm |
| Permissible SO2 contaminant concentration at a relative humidity |
25ppm |
| Product Group | 15 (Remote I/O) |
| SAP´den ambalaj tipi | BOX |
| Country of origin | DE |
| GTIN | 4045454783235 |
| Customs Tariff No. | 85176200000 |
