Plug connectors and cablesIndustrial Ethernet cables and fieldbus cables, YG2A55-020C1BXLEAXConnection type head A: Female connector, M12, 5-pin, angled, A-codedSignal type: FieldbusCable: 2 m, 4-wire, PUR, halogen-freeDescription: Fieldbus, shieldedApplication: Drag chain operation, Zones with oils and lubricants
Plug connectors and cables

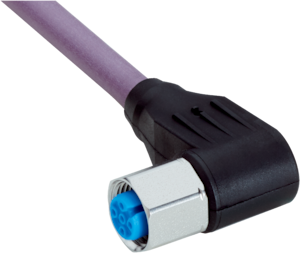

Industrial Ethernet cables and fieldbus cables, YG2A55-020C1BXLEAX
Connection type head A: Female connector, M12, 5-pin, angled, A-coded
Signal type: Fieldbus
Cable: 2 m, 4-wire, PUR, halogen-free
Description: Fieldbus, shielded
Application: Drag chain operation, Zones with oils and lubricants
| Connection type head A | Female connector, M12, 5-pin, angled, A-coded | ||||||||
| Locking plug connector | Screw connection | ||||||||
| Connector material | TPU | ||||||||
| Connector color | Black | ||||||||
| Locking nut material | Stainless steel (V4A/1.4404) | ||||||||
| Seal material | FKM | ||||||||
| Tightening torque | 0.6 Nm | ||||||||
| Width across flats | 13 | ||||||||
| Cable | 2 m, 4-wire, PUR, halogen-free | ||||||||
| Jacket material | PUR, halogen-free | ||||||||
| Jacket color | Violet | ||||||||
| Cable diameter | 6.9 mm | ||||||||
| Conductor cross section | 2 x 0.25 mm² + 2 x 0.34 mm² | ||||||||
| Shielding | Shielded | ||||||||
| |||||||||
| Bending cycles | 1,000,000 | ||||||||
| Nominal voltage, cable | 300 V AC | ||||||||
| Test voltage, cable | 2,000 V AC | ||||||||
| |||||||||
| Rated impulse voltage | 1.5 kV | ||||||||
| Current loading | ≤ 4 A | ||||||||
| Traversing speed | 3 m/s | ||||||||
| Travelling distance | 5 m | ||||||||
| Acceleration | ≤ 5 m/s² | ||||||||
| Signal type | Fieldbus | ||||||||
| Transmission characteristics | CANopen, DeviceNet™ | ||||||||
| Application | Drag chain operation Zones with oils and lubricants | ||||||||
| Authorizations | CE UL | ||||||||
| UL File No. | E335179 | ||||||||
| Enclosure rating | IP65 / IP66K / IP67 | ||||||||
| |||||||||
| Contamination rating | 3 | ||||||||
| Insulation resistance | 100 MΩ | ||||||||
| Overvoltage category | III | ||||||||
| Specific insulation resistance | 30 mΩ | ||||||||
| Thermal resistance, piping | Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2 | ||||||||
